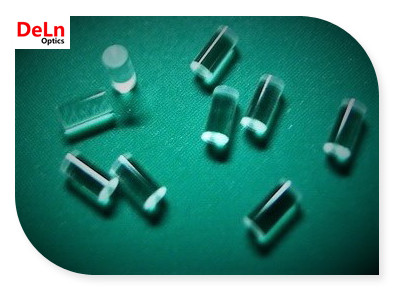

Rod Lens

Rod Lens for use in a variety of laser and imaging systems.

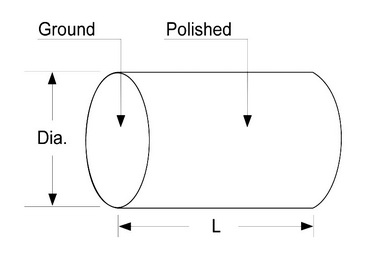

Specifications of
Rod Lens

Material

BK7, UV grade fused silica

Diameter Tolerance

+0/-0.05mm

Length Tolerance

±0.2mm

Surface Quality

60/40 scratch and dig

Clear Aperture

>90%

Polish

Polished on the circumference and ground on both ends

Coating

None

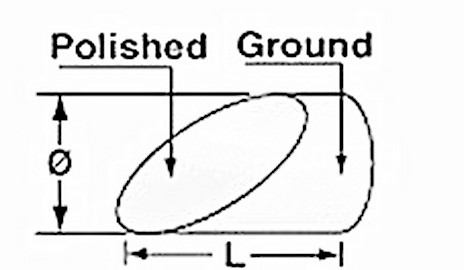

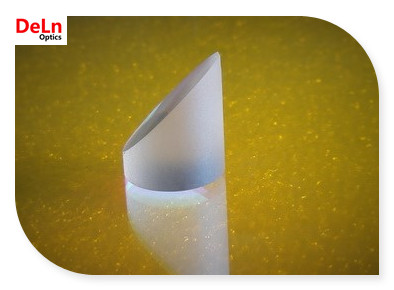

Specifications of 45 deg Rod Lens and mirror

Material

BK7, UV grade fused silica

Diameter Tolerance

+0/-0.05mm

Length Tolerance

±0.2mm

Surface Quality

60/40 scratch and dig

Clear Aperture

>90%

Polish

Polished elliptical surfaces, ground circumferences and bases.

Coating

None, or elliptical surfaces with Protected Aluminum coated
