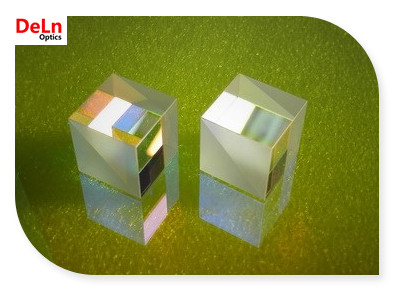

Polarization Beamsplitter

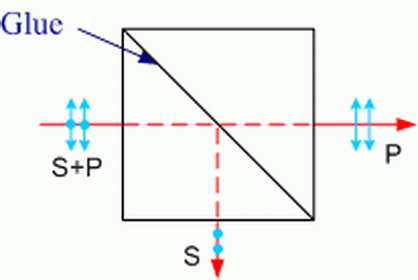

Polarizing Cube Beamsplitters split randomly polarized beams into two orthogonal,linearly,polarized components. S-polarized light is reflected at a 90deg.Angle while P-polarized light is transmitted. Each beamsplitter consists of a pair of precision high tolerance right angle prisms cemented together with a dielectric coating on the hypotenuse of one of prisms.


Specifications

Material

BK7

Dimension Tolerance

±0.1mm

Clear Aperture

>90%

Flatness

λ/4 @ 632.8nm to λ/10 @ 632.8nm per 25mm

Beam Deviation

±3 arc minutes to ±5 arc seconds

Surface Quality

60/40 or better

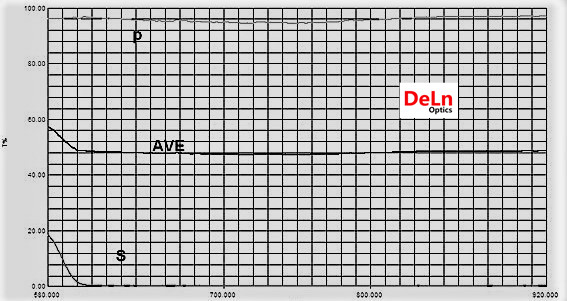

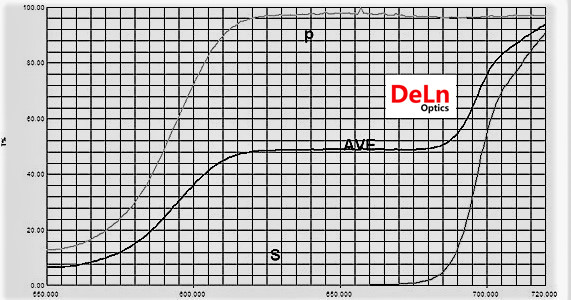

Polarization Coating

Tp>95%, Rs>99.5%; Extinction Ratio: >500:1

AR Coating

R<[email protected] Wavelength or R<0.5% @ Broadband

Single Wavelength

632.8, 650, 808, 850, 980, 1064, 1310, 1550nm

Broadband

450-650, 650-900, 720-1080, 900-1200, 1200-1600nm
