Bandpass Interference Filter

Optical bandpass Interference Filters are used extensively in a variety of biotech, biomedical, and quantitative chemical applications to selectively transmit a narrow range of wavelengths while blocking all others.



Interference filters are widely used in instrumentation for clinical chemistry, environmental testing, colorimetry, elemental and laser line separation, flame photometry, fluorescence, immunoassays, etc. In addition, interference filters are used to select discrete spectral lines from arc or gas discharge lamps (Hg, Xe, Cd, etc.) and to isolate a particular line from Ar, Kr, Nd:YAG, and other lasers.



DELN provides variety band pass interference filters of from ultraviolet to near infrared spectral range.

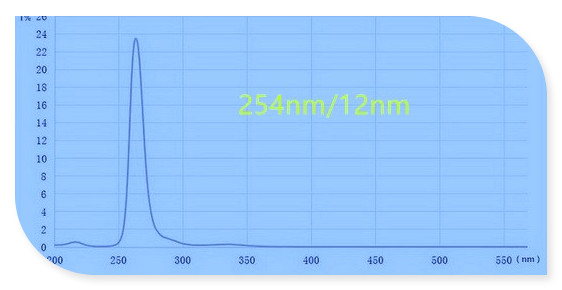

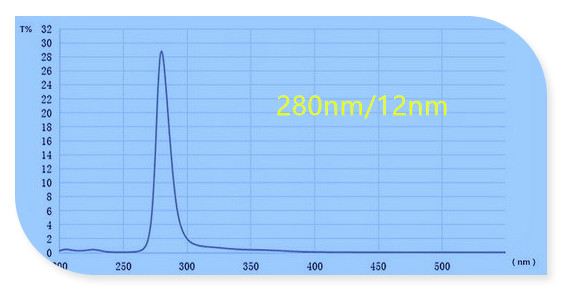

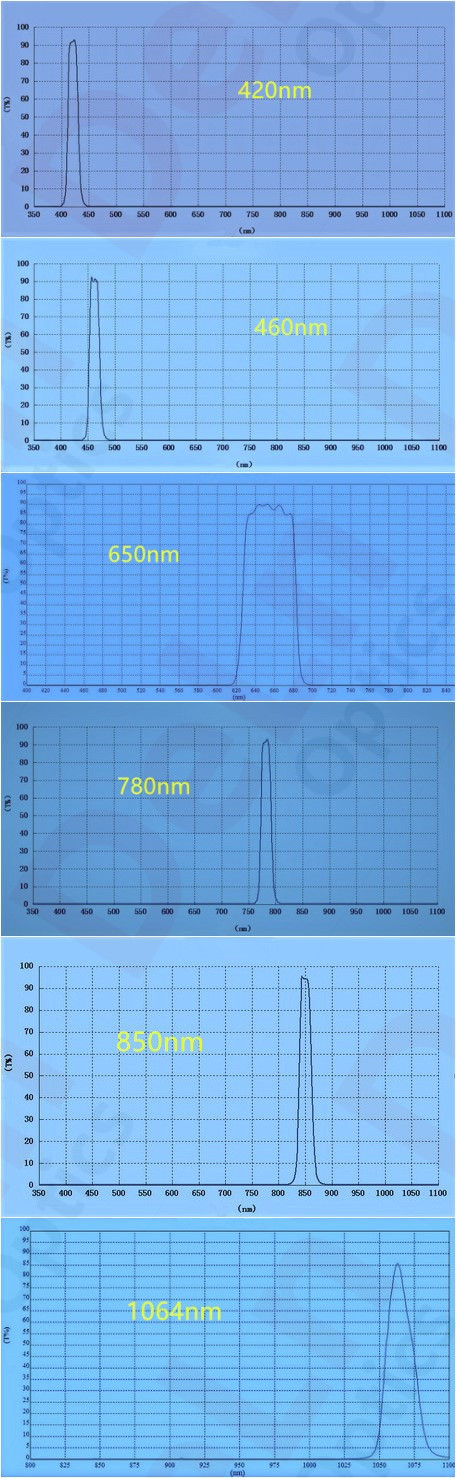

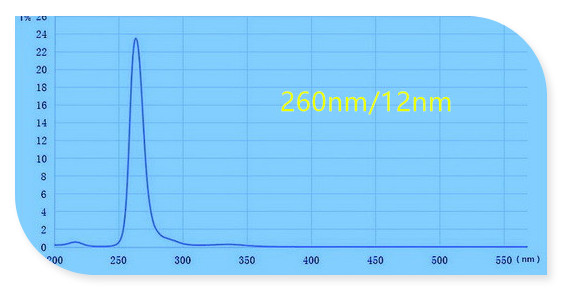

Specifications

Center Wavelength CWL (nm)

220-1100

CWL Tolerance (nm)

±2 (According to customer's specifications)

FWHM (nm)

8-120

FWHM Tolerance (nm)

±2 (According to customer's specifications)

Transmission (%)

>20 to 90 (According to customer's specifications)

Blocking Wavelength Range (nm)

200-1100(According to customer's specifications)

Optical Density OD

OD3 to OD6

Material

BK7, B270, Fused Silica, Float Glass, Color glass

Surface Quality

60/40 or better

Operating Temperature (°C)

-50 to +75

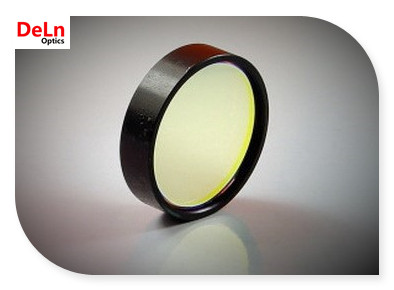

Construction

Mounted in black anodized ring available

Other

Double-band pass and Multi-band pass filters available






Biomedical filters

Biomedical filters are the core components for biomedical and biochemical analyzer instrument.

For these narrow band interference filters, the bandwidth is limited to 8nm and 10nm. Light outside the interested area is blocked to above OD4 of from 200nm to 1100nm.


These filters with high transmission and deep blocking depth, and the bandwidth to be within 8+/-2nm or 10+/-2nm.


The wavelength of commonly used as follows:


Wavelength (nm)

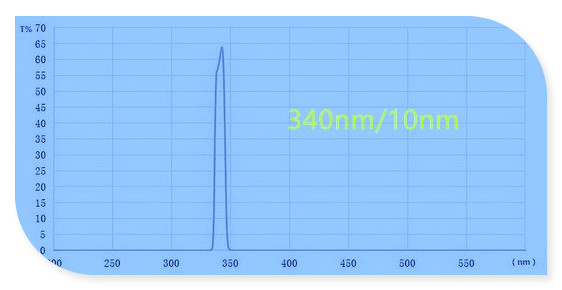

340,
380,

405,415,450,492,

505,510,540,546,550,570,578,

600,620,630,650,670,690
